Electric vehicle power fuses — 500 Vdc, 350-1000 A
Catalog symbols:• EV40-(amp) 38.1 mm diameter • EV50-(amp) 50.8 mm diameter • EV60-(amp) 63.5 mm diameter
Description:Eaton's Bussmann@ series Electric Vehicle (EV) fuses for the protection of high power battery charging and management systems up to 500 Vdc in ratings from 350 to 1000 amps.
Specifications:Ratings
• Volts - 500 Vdc • Amps - 350-1000A • Interrupting rating • Max DC - 50 kA • Min DC 200% |
Packaging：
Features:• Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage battery packs • Higher interrupting rating protects high capacity battery packs needed for vehicle acceleration and range requirements • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components • Requires up to 48% less space than conventional high speed fuses to help reduce space and weight • Data logging system marks each fuse with a serial number and date code for traceability of Critical to Quality characteristics • To help project the life of the fuse in your application, unique driving profiles and conditions can be simulated to verify proper fuse size and performance under a wide range of driving behaviors • Operation as low as 200% overload provides back up protection to the battery management system • Can be applied in parallel to realize greater ampacity within sizing guidelines |
Catalog numbers:
Average @ 50Ka / 500Vdc Catalog no. Current Rating In Pre-arcing I2t Total I2t Power dissipation (A) (A2s) (A2s) at 0.5 In (W)* | ||||
38.1 mm diameter case | ||||
EV40-350-C | 350 | 10,000 | 39,000 | 14 |
EV40-400-C | 400 | 14,000 | 52,000 | 15 |
EV40-450-C | 450 | 21,000 | 72,000 | 16 |
EV40-500-C | 500 | 27,000 | 90,000 | 17 |
EV40-550-C | 550 | 40,000 | 132,000 | 17 |
EV40-600-C | 600 | 50,000 | 165,000 | 18 |
50.8 mm diameter case | ||||
EV50-550-C | 550 | 32,000 | 122,000 | 23 |
EV50-600-C | 600 | 40,000 | 143,000 | 24 |
EV50-700-C | 700 | 62,000 | 211,000 | 27 |
EV50-800-C | 800 | 87,000 | 286,000 | 30 |
63.5 mm diameter case | ||||
EV60-700-C | 700 | 47,000 | 179,000 | 32 |
EV60-800-C | 800 | 76,000 | 273,000 | 33 |
EV60-900-C | 900 | 102,000 | 345,000 | 37 |
EV60-1000-C | 1000 | 142,000 | 468,000 | 39 |
* 50 percent of fuse label amp rating tested at 230C ± 20C.

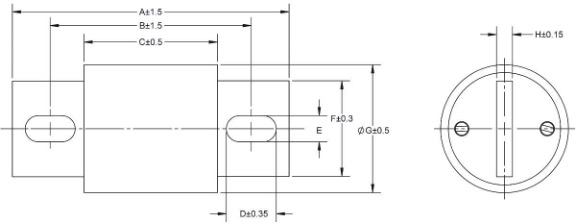

Dimensionsᵻ - mm:
Catalogue number | A | B | C | D | E | F | G | H | J |
EV40-Amp-C | 110.31 | 78.28 | 53.01 | 19.07 | 10.34 | 25.40 | 38.10 | 6.35 | 0.2 |
EV50-Amp-C | 109.91 | 79.93 | 53.01 | 19.86 | 10.36 | 37.97 | 50.80 | 6.35 | 0.3 |
EV60-Amp-C | 160.41 | 106.7 | 53.01 | 33.02 | 13.46 | 50.80 | 63.50 | 9.53 | 0.3 |
ᵻ Dimension are nominal values.
38.1 mm diameter DC minimum melt / maximum clearing time-current curves - multiple of rated current For catalog numbers EV40-350-C to EV40-600-C amp fuses supplied via DC rectifier @500Vdc and time constant (L/R) 2 ms ± 0.5 ms
50.8 mm diameter DC minimum melt / maximum clearing time-current curves - multiple of rated current
For catalog numbers EV50-550-C to EV50-800-C amp fuses supplied via DC rectifier @500Vdc and time constant (L/R) 2 ms ± 0.5 ms
63.5 mm diameter DC minimum melt / maximum clearing time-current curves - multiple of rated current
For catalog numbers EV60-700-C to EV60-1000-C amp fuses supplied via DC rectifier @500Vdc and time constant (L/R) 2 ms ± 0.5 ms
